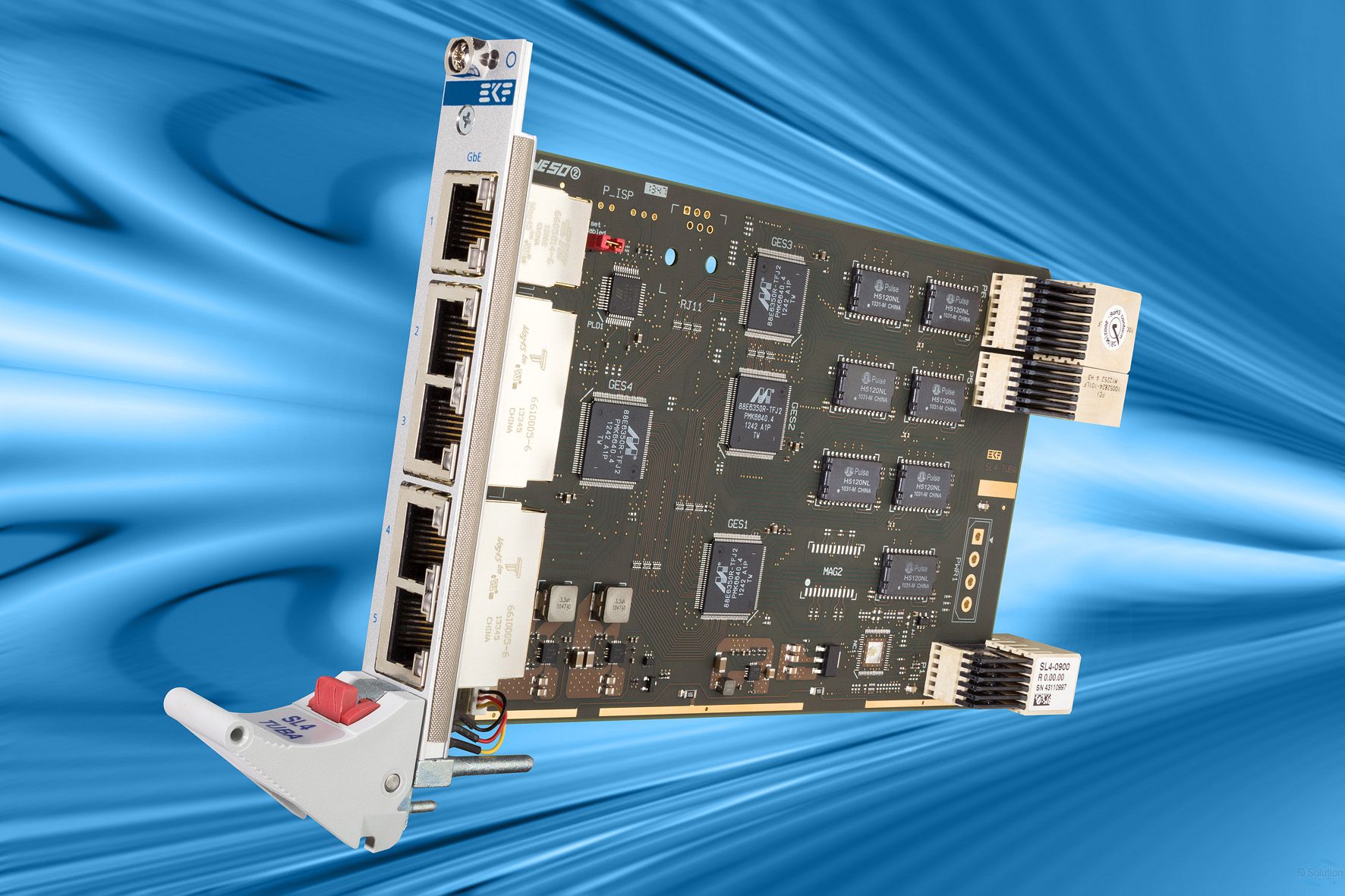

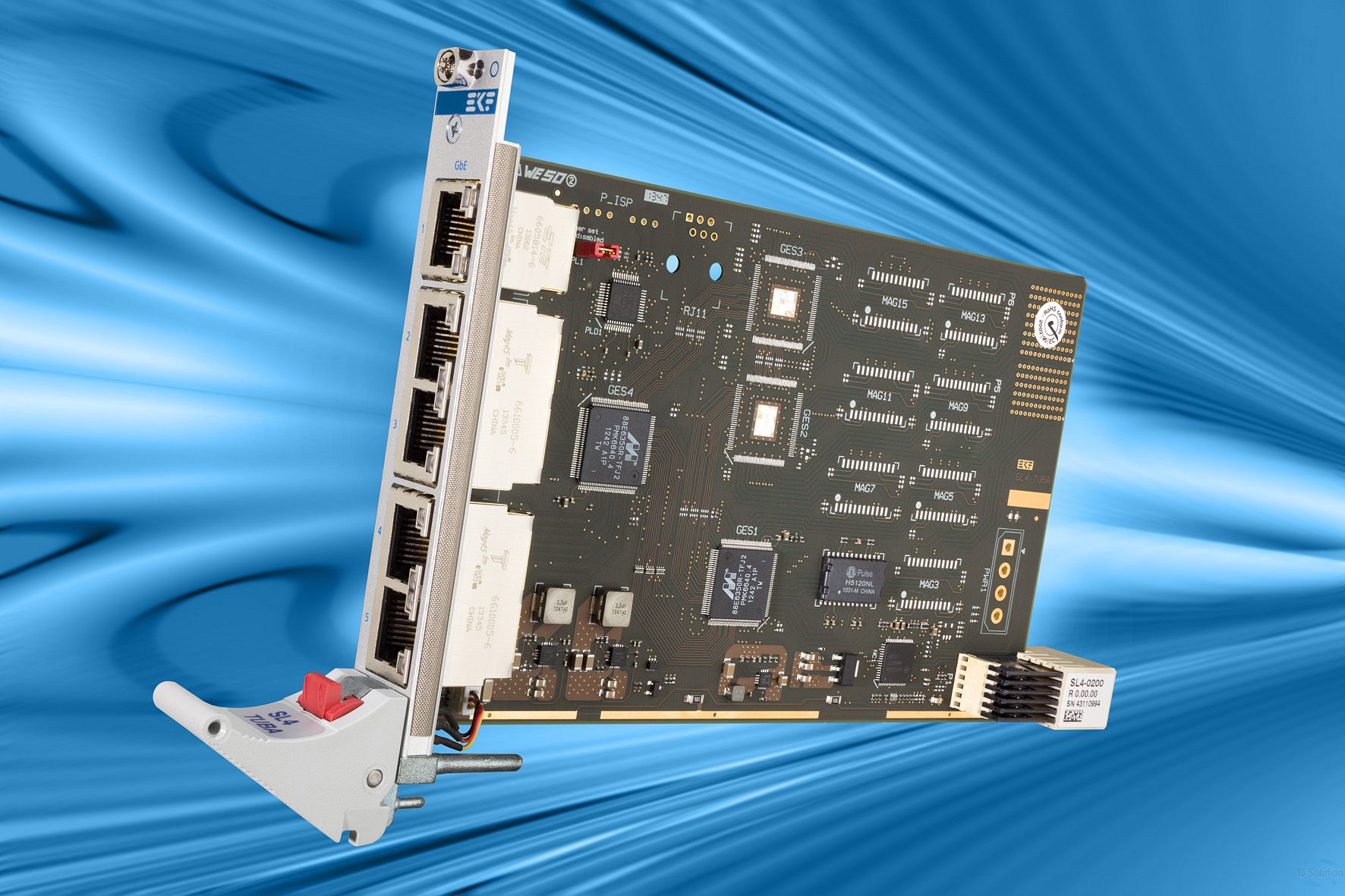

EKF SL4-TUBA коммутатор

Производитель: EKF SYSTEM
Запросить цену
  • PICMG® CompactPCI® Serial Standard (CPCI-S.0) peripheral slot card
  • Single Size Eurocard 3U 4HP 100x160mm2
  • cPCI-S backplane connectors P1, P5, P6
  • Suitable for PCIe x 1 standard peripheral slots
  • P1 used for PCI Express® lane to I210 Gigabit Ethernet Controller
  • P5, P6 used for up to 14 GbE ports over backplane or rear I/O transition module
  • 5 x RJ45 front panel GbE ports

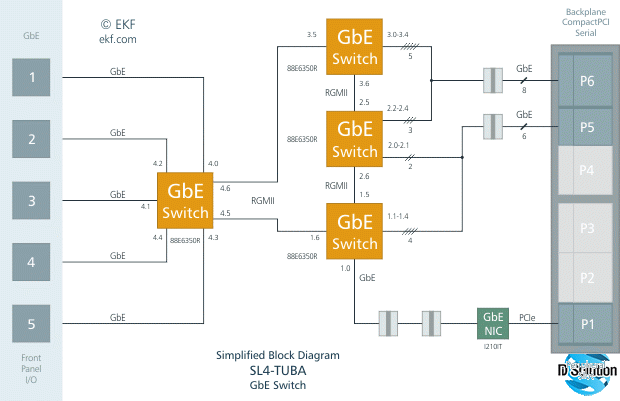

  • Marvell® 88E6350R based Gigabit Ethernet switch fabric (5 x PHY, 2 x RGMII each device)
  • High performance, non-blocking, Gigabit Ethernet
  • Support for up to 1K MAC addresses, 10KByte Jumbo Frames
  • Unmanaged solution
  • Management available on request via Marvell® SOHO Switch GUI Software
  • Up to four 88E6350R devices in use for scalability
  • Intel® I210IT Gigabit Ethernet Controller internally wired to GbE switch fabric (20th port)
  • 9.5KB Jumbo Frame support
  • Hardware-based time stamping (IEEE 1588) and support for 802.1AS
  • Option IEEE 802.1Qav compliant Audio-Video Bridging (AVB)
  • IPv4, IPv6, TCP/UDP checksum offloads
  • Driver support for all major operating systems
  • Designed & manufactured in Germany
  • Certified quality management ISO 9001
  • Long term availability
  • Rugged solution (coating, sealing, underfilling available on request)
  • RoHS compliant
  • Commercial and industrial temperature range
  • Humidity 5% ... 95% RH non condensing
  • Altitude -300m ... +3000m
  • Shock 15g 0.33ms, 6g 6ms
  • Vibration 1g 5-2000Hz
  • MTBF 30.2 years
  • EC Regulations EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
