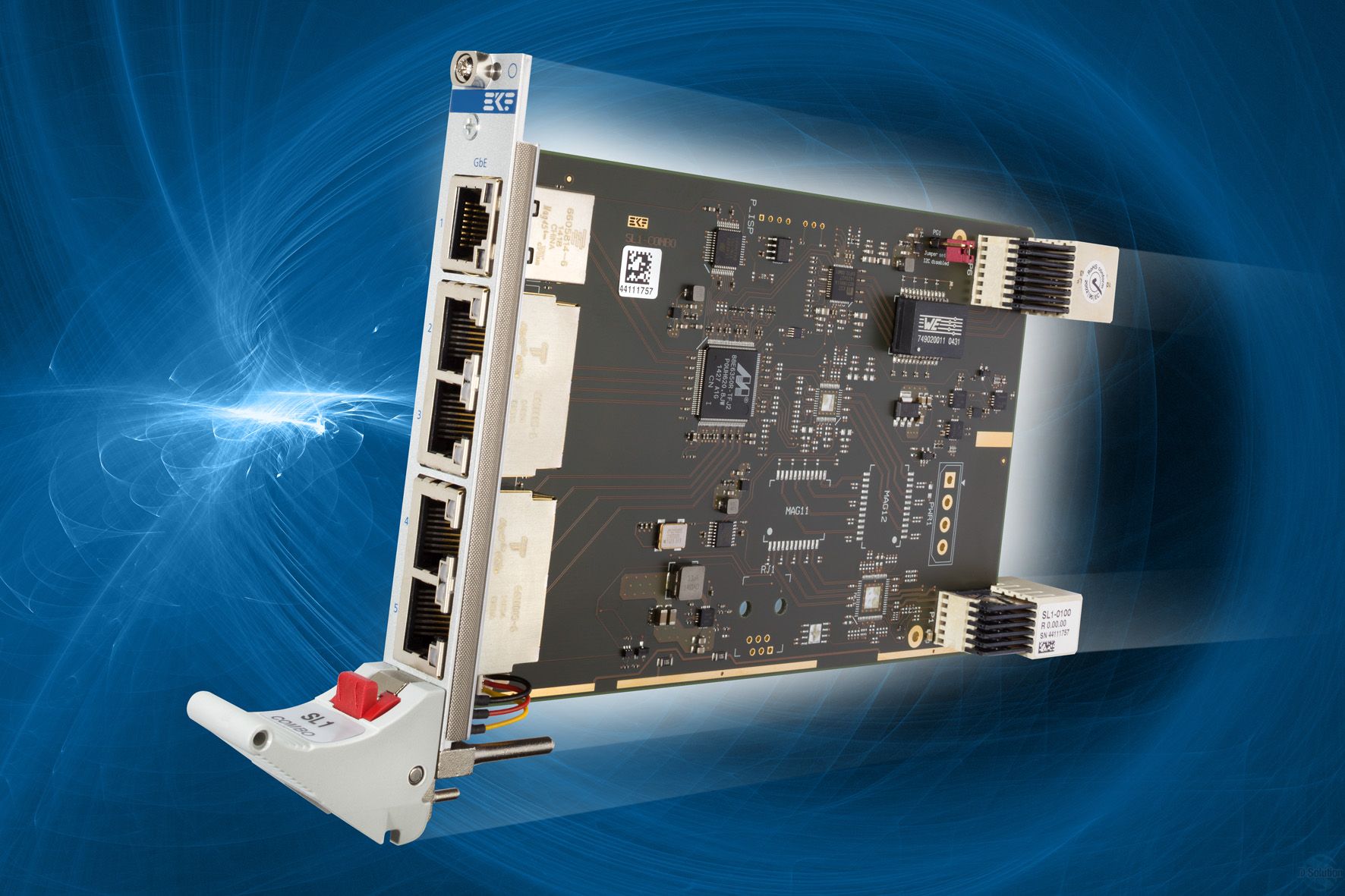

EKF SL1-COMBO коммутатор

Производитель: EKF SYSTEM
Запросить цену


  • PICMG® CompactPCI® Serial Standard (CPCI-S.0) peripheral slot card
  • Single Size Eurocard 3U 4HP 100x160mm2
  • cPCI-S backplane connectors P1, P5, P6
  • Suitable for PCIe® x 1 capable standard peripheral slots
  • Stand-alone operation (option)
Front Panel I/O
  • 5 x RJ45 front panel GbE ports
  • Integrated 12-core magnetics for optimum noise immunity
Backplane I/O (Option)

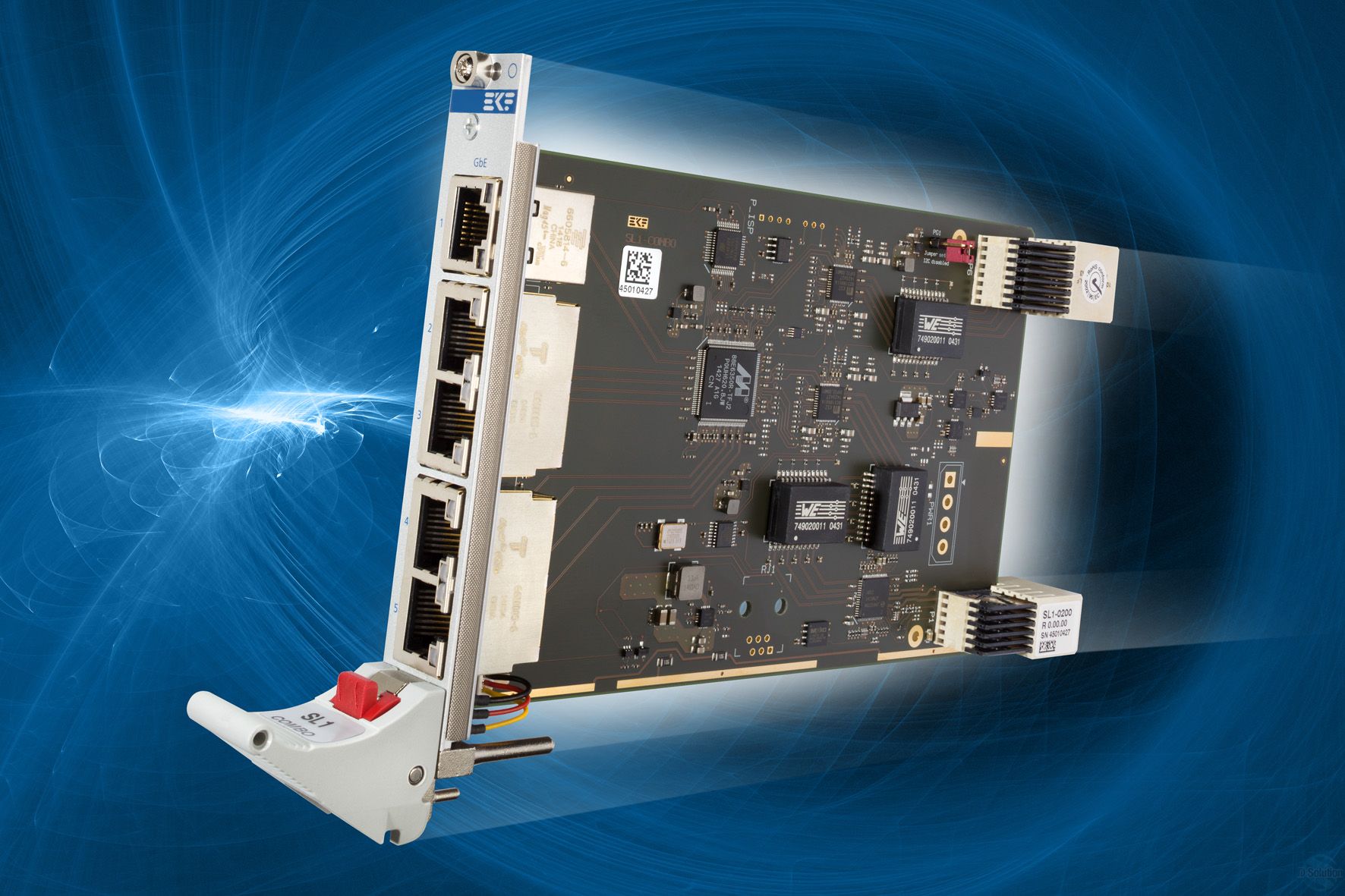

  • Option on-board GbE NIC (SL1-0200-COMBO)
  • CompactPCI® Serial backplane connector P1 used for PCI Express® x 1 lane to I210 (I211) Gigabit Ethernet Controller (SL1-0200-COMBO)
  • Option GbE backplane communication
  • CompactPCI® Serial backplane connector P6 used for 1 x GbE over backplane (star fabric)

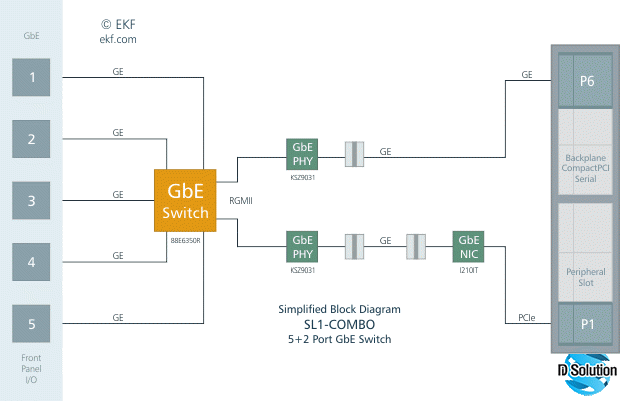

Gigabit Ethernet Switch
  • Marvell® 88E6350R based Gigabit Ethernet switch (5 x PHY, 2 x RGMII)
  • High performance, non-blocking, Gigabit Ethernet
  • Support for up to 1K MAC addresses, 10KByte Jumbo Frames
  • Unmanaged solution
  • Management available on request via Marvell® SOHO Switch GUI Software
Gigabit Ethernet Controller (Option)
  • Intel® I210IT or I211 Gigabit Ethernet Controller internally wired to GbE switch (SL1-0200-COMBO)
  • 9.5KB Jumbo Frame support
  • Hardware-based time stamping (IEEE 1588) and support for 802.1AS
  • Option IEEE 802.1Qav compliant Audio-Video Bridging (AVB)
  • IPv4, IPv6, TCP/UDP checksum offloads
  • Driver support for all major operating systems
Environmental, Regulatory
  • Designed & manufactured in Germany
  • Certified quality management according to ISO 9001
  • Long term availability
  • Rugged solution
  • Ccoating, sealing, underfilling available on request
  • RoHS compliant 2002/95/EC
  • Operating temperature 0°C to +70°C (commercial temperature range)
  • Operating temperature -40°C to +85°C (industrial temperature range) on request
  • Humidity 5% ... 95% RH non condensing
  • Altitude -300m ... +3000m
  • Shock 15g 0.33ms, 6g 6ms
  • Vibration 1g 5-2000Hz
  • MTBF 45.8 years
  • EC Regulations EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
